Deflector: Spatial Separation

Back to Main Page

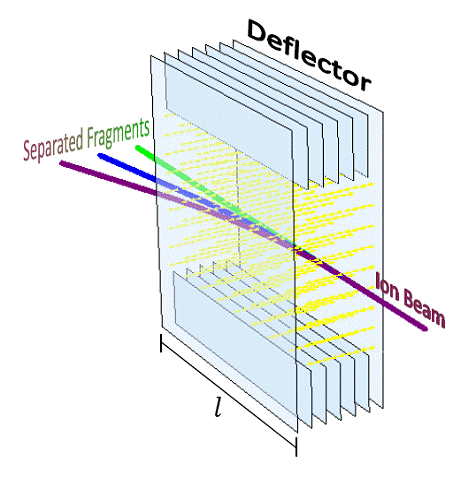

The deflector is essentially a parallel plate capacitor. The electric field between the plates accelerates fragments of different charge-to-mass ratios at different rates in a direction perpendicular to the ion beam axis. Suppose that the electric field is uniform and confined to the region between the plates. Let the y-axis point in the direction of the electric field of the deflector. The acceleration of a fragment with charge and mass in the y direction will be:

Suppose that the deflector is length in the ion beam direction. If the fragment enters the deflector with a velocity in the ion beam direction then the time that it spends inside the deflector is:

When the fragment exits the deflector it will have a velocity in the y-direction given by:

Therefore the fragment will be deflected by an angle measured from the axis of the ion beam (z-axis) given by:

Letting , we can express as:
